A wobbly canopy is worse than no canopy at all. Get the mounting wrong, and you're looking at rattling panels, water creeping into your gear, and a canopy that shifts under load on a rough track. Know how to attach a canopy to your ute tray properly, and you'll never think about it again.
This guide covers what to check before you start, the tools and hardware you'll need, a step-by-step mounting process, the most common mistakes that cause leaks and rattling, and when it's worth handing the job to a professional.
Quick Answer
- Confirm your canopy matches your tray type and bolt pattern before lifting anything
- Most canopies mount with U-bolts, clamps, or bolt-through fixings into the tray rails
- Get a second set of hands as aluminium canopies typically weigh 80–120kg
- Seal every join and bolt hole to stop dust and water getting in
- A loaded canopy can push you over your ute's Gross Vehicle Mass (GVM), so check your payload first
Before You Start: Check Compatibility
Most DIY canopy jobs go wrong before the first bolt goes in. Check these first:
- Tray type: Steel, aluminium and factory tubs take different mounting hardware
- Dimensions and overhang: Measure your tray and check that the canopy won't block your reversing camera or tow ball
- Bolt pattern and tie-downs: Confirm mounting holes line up with your tray rails without covering existing tie-down points
- Weight: Every kilo added comes off your payload, so do the maths if you're planning a heavy build
If you're still shopping, an aluminium ute canopy is the pick for most tradies. It’s lighter than steel, rust-resistant, and built to handle years of heavy-duty use on the worksite.
Tools and Hardware You'll Need
- Socket set
- Torque wrench
- Power drill with metal-rated bits
- Marker/tape
- U-bolts, clamps, or bolt-through kit
- Rubber or neoprene gasket tape
- Marine-grade sealant (Sikaflex or similar)
- Safety glasses and gloves.
Bring a mate – don't do this solo.
Step-by-Step Mounting Process on How to Attach a Canopy to Your Ute Tray
- Clean and prep the tray. Clear dust, rust and grit so the canopy sits flush.
- Lay down the gasket. Run rubber or neoprene tape along the tray rails to cut rattling and give the sealant something to key into.
- Position and square the canopy. With help, lift it on and measure from both rear corners back to the headboard. They should match, or the doors won't seal properly.

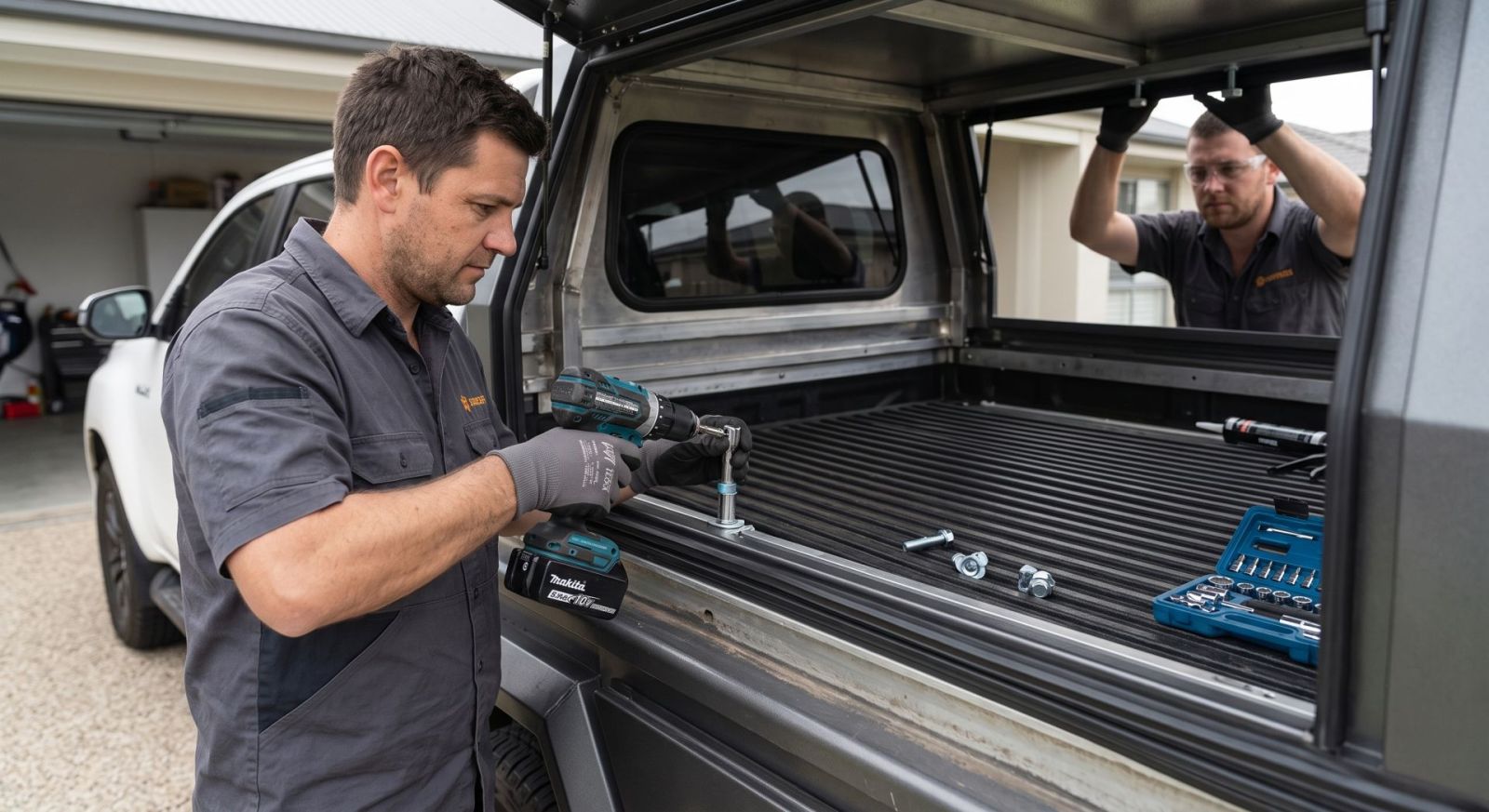

- Mark and drill your bolt holes. Check underneath for wiring, fuel or brake lines before drilling through the tray floor.

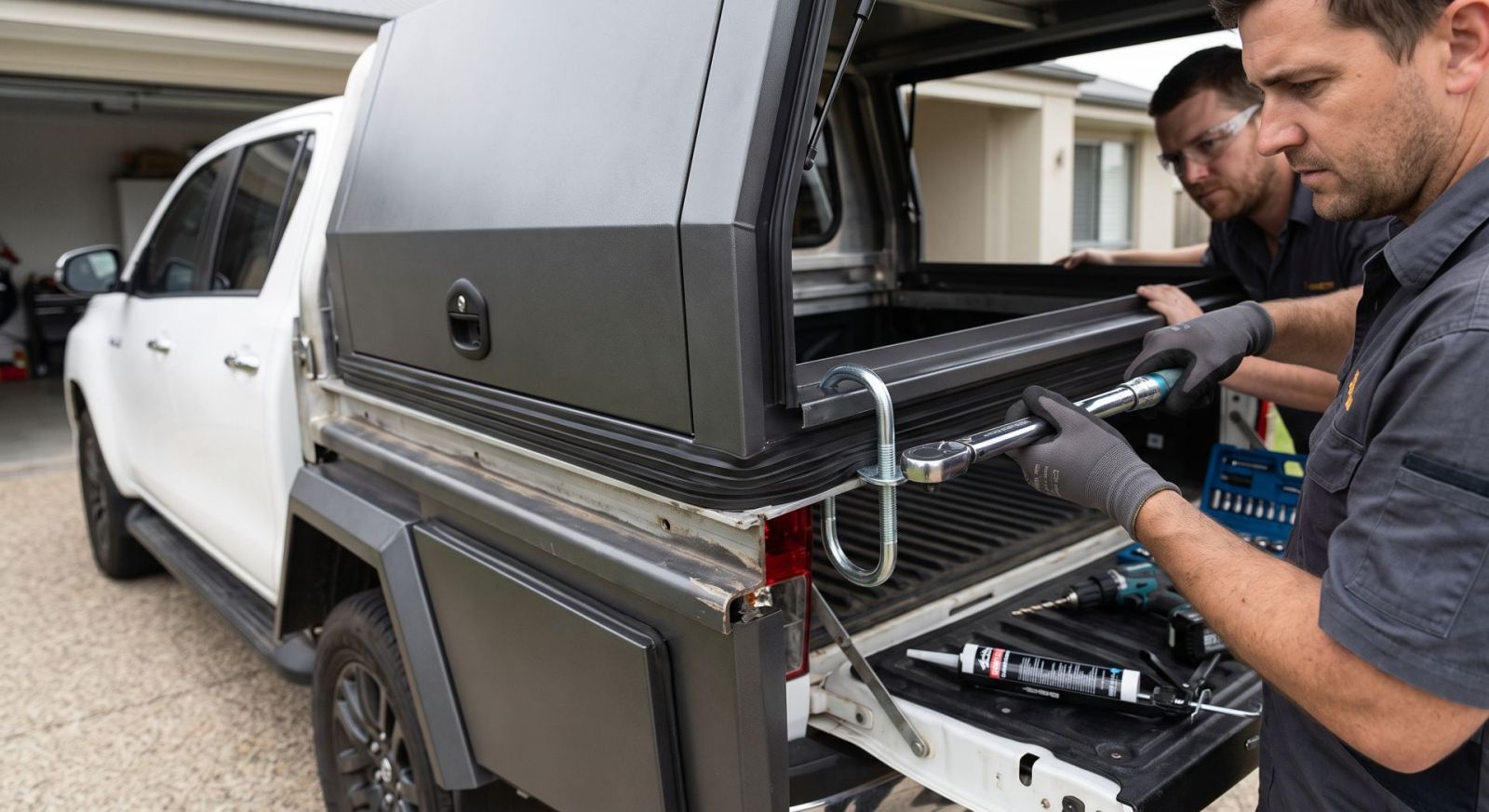

- Bolt or clamp it down. Tighten in a cross pattern so the canopy settles evenly, then finish with a torque wrench to spec.
- Seal every join and hole. This is the step most DIY jobs skip, but it's what stops dust and water getting in months down the track.
- Fit accessories and test. Add a ute canopy ladder for roof access or a ladder rack for ute trays if you're carrying long gear. Close every door, check for even gaps, and give it a shake: nothing should move. Recheck all bolts after your first few drives.
Setting up storage at the same time? Our guide on how to attach a toolbox to your ute tray covers the hardware and layout for that part of the job.
Common Mistakes That Cause Leaks, Rattling and Damage
When learning how to attach a canopy to your ute tray, it’s just as important to know what trips up first-timers.
- Skipping the gasket tape: Metal-on-metal contact causes rattling even with tight bolts
- Wrong bolt tension: Too loose and the canopy shifts under load; too tight and you can crack the tray. Torque to spec, not by feel
- Drilling blind: Always check underneath for wiring and brake lines first
- Ignoring payload: Tools, water and gear add up fast and can push a ute over its GVM, affecting braking and handling
- Forgetting to reseal: Drilling extra holes later for wiring without resealing is a common cause of water ingress
When It's Worth Calling in Expert Help
Fitting a canopy is a straightforward weekend job for anyone comfortable with a drill and a torque wrench. But get it checked if your build (canopy plus drawers, water tanks or a full fit-out) is going to push your ute close to its GVM, as that's a compliance issue. Vehicle modifications in Australia are assessed against the National Code of Practice for Light Vehicle Construction and Modification (VSB 14), and overloading beyond your rated GVM affects braking, handling and legal compliance regardless of how well the canopy's bolted down.
Get help if you're unsure about drilling near wiring or brake lines, unsure how your build affects your GVM, or your tray uses an unusual mounting system. A ten-minute inspection is a lot cheaper than a canopy that comes loose at 100km/h.
Get It Right the First Time
A canopy that's bolted down square, sealed properly and matched to your tray can outlast the ute it's sitting on. If you'd rather talk it through before you start drilling, our team can help you pick the right canopy and mounting kit.
