Are ute trays universal? The straight answer is no. And finding that out after your toolbox turns out to be too wide for your wheel arches is an expensive way to learn it. Ute tray dimensions vary across makes, models, and even build years, so a box that fits your mate's HiLux might not sit right on yours.
The good news is that fitment isn't guesswork once you know what actually varies. Here's what determines whether a toolbox or canopy will fit your tray, and how to check before you buy.
Quick Answer
- Ute trays are not universal. Dimensions vary by make, model, tray type, and whether it's factory or aftermarket
- The gap between wheel arches is the single most important measurement for toolbox and canopy fitment
- Factory tubs and aftermarket alloy trays are built differently and rarely share the same specs
- Steel and aluminium trays can fit the same way, as material affects weight and durability, not size
- Measuring your actual tray beats relying on published specs, every time
Why Aren’t Ute Trays Universal?
Every manufacturer engineers its tray around its own chassis, wheel arches, and GVM rating. That's why the same "dual-cab ute" category can throw up tray widths that differ by 100mm or more between brands. When tradies ask us, “Are ute trays universal?”, the honest answer is that even utes that look nearly identical from the kerb can have completely different load spaces underneath.
Plenty of utes on the road also aren't running their factory tub at all. Tray-back conversions and aftermarket alloy trays are common across trade fleets, and each of those changes the dimensions again.
Factory Tub vs Aftermarket Tray
A factory tub is moulded to fit the ute it came with, wheel arch intrusions and all. An aftermarket tray, steel or alloy, sits flatter and wider, since it's built as a separate unit bolted to the chassis rails rather than shaped around the body.
This is important for fitment because:
- Between-arch width is usually tighter on a factory tub, since the arches intrude into the tray floor
- Aftermarket trays often give you more usable flat space, opening up options for full-length canopies and larger toolboxes
- Mounting points differ, too. Tie-down rails, chassis brackets, and drain positions aren't standardised across tray types
If you've had a tray-back fitted, measure the actual tray in front of you rather than assuming it matches factory specs.
Steel vs Alloy: Does Material Change What Fits?
Not directly. A steel tray and an alloy tray with the same physical dimensions accept the same-size toolbox. Material affects weight (alloy is lighter, which counts toward your payload) and corrosion resistance, not compatibility.
The Measurements That Actually Matter

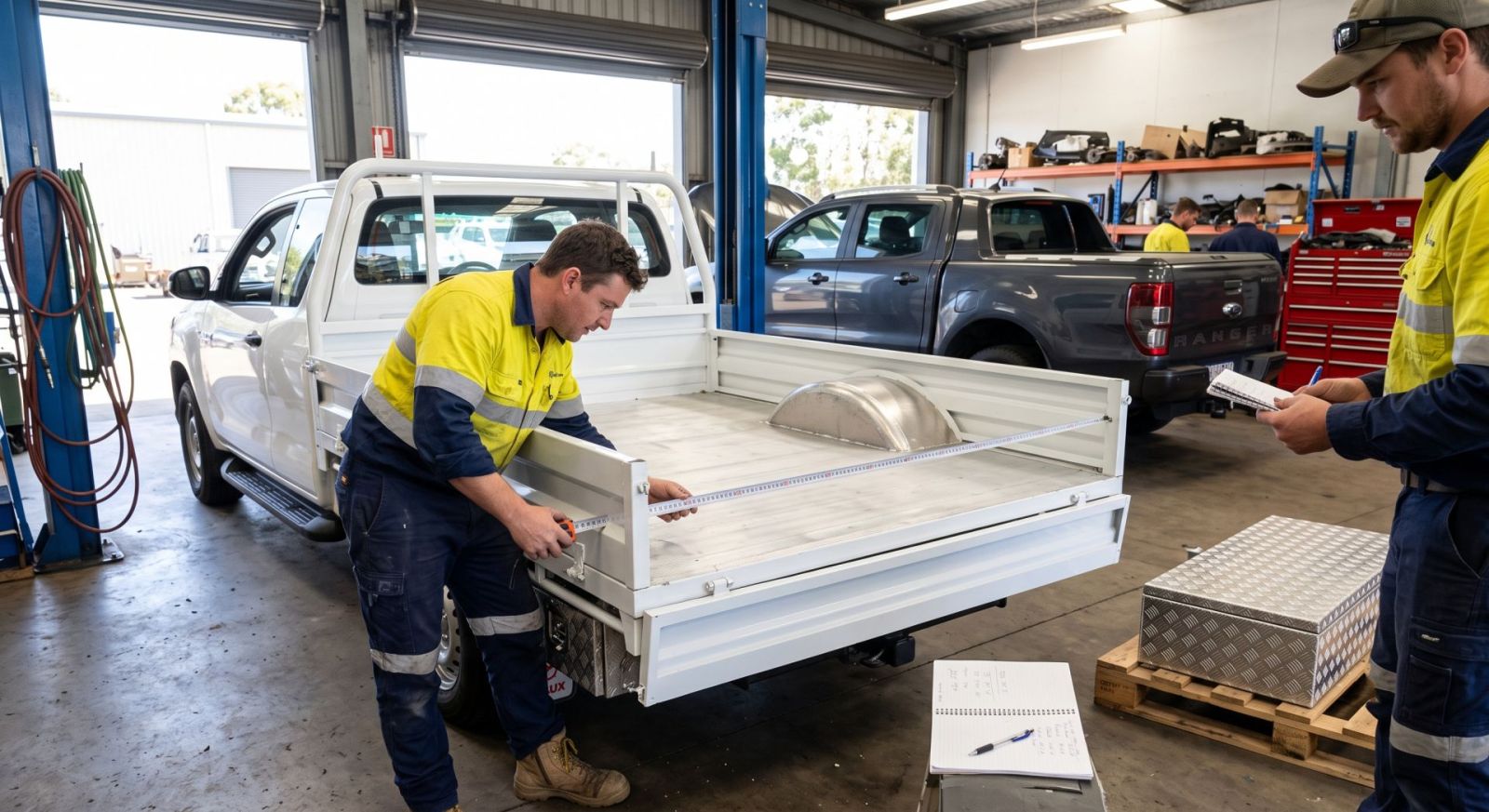

Before buying a canopy for your ute or a side toolbox, get the tape measure out and check:
- Internal tray length: Front wall to tailgate, inside edge to inside edge
- Internal tray width: Side to side at the narrowest point
- Between wheel arches: Your usable flat floor space, and the number that catches most people out. This is your most important measurement for toolbox fitment, as it’s the tightest point on most trays and determines whether a side or undertray box sits flush.
- Tray depth: Floor to the top of the tray wall
For a full breakdown of what to expect, model by model, our guide to ute tray dimensions covers Ranger, HiLux, D-MAX, and more.
Common Fitment Mistakes That Lead to Returns
- Trusting spec sheets over your own tape measure. Published dimensions vary by variant and can shift between model years
- Forgetting clearance. Add 20–30mm on each dimension for mounting hardware and a clean fit
- Ignoring tub liners. A fitted liner can eat into your usable width and depth
- Mixing up the tub and tray. A factory tub and an aftermarket tray aren't interchangeable measurements, even on the same ute badge
How to Confirm Compatibility Confidently
Since ute trays aren't universal, the safest move is to measure your actual tray, not the brochure.

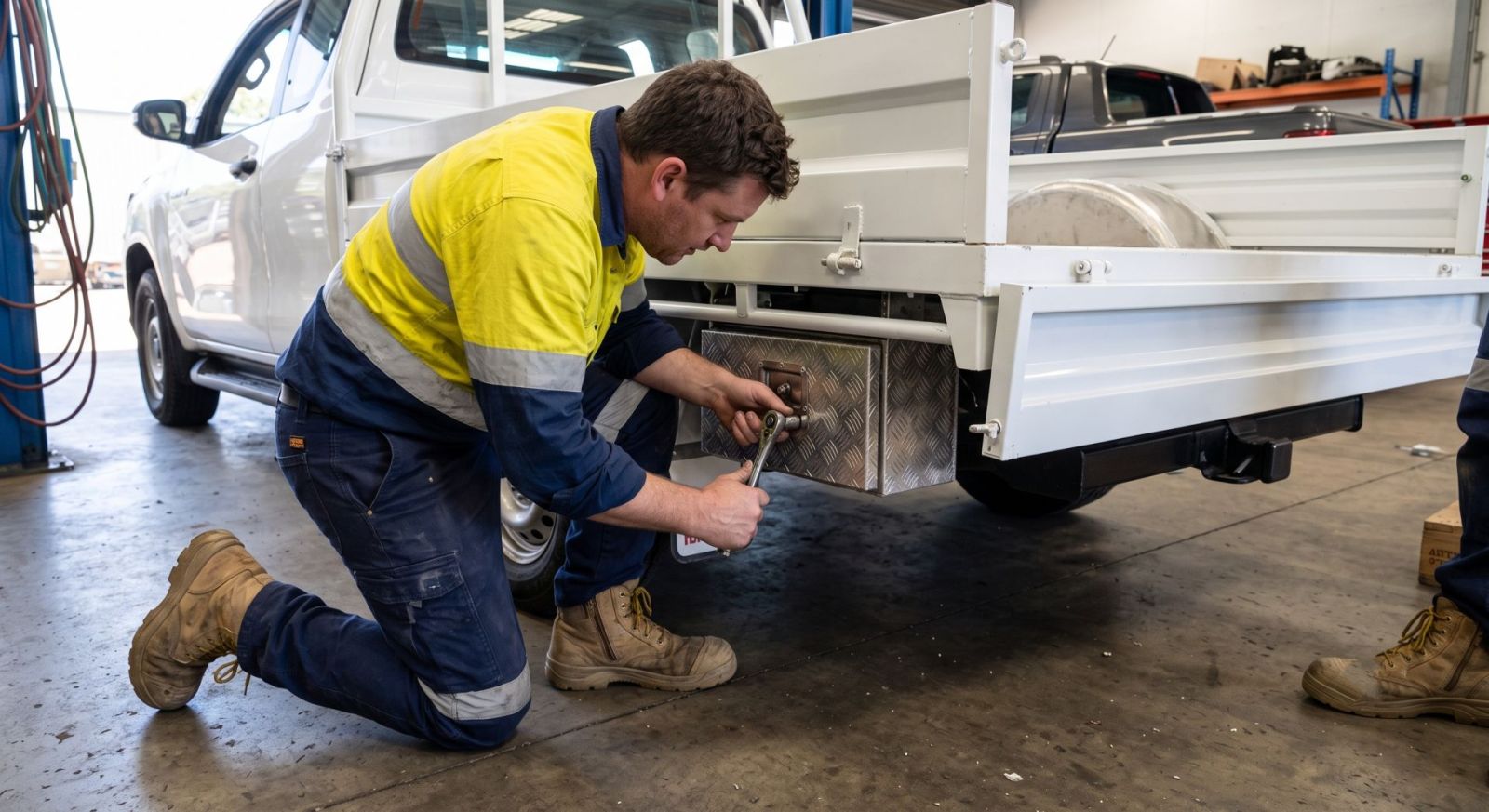

Check between-arch width first, since that's what trips up most side and under tray tool box fitments. If you're after extra under-tray storage without losing bed space, a trundle tray for sale is worth a look; it slides out from under the bed and keeps the tray floor clear.
Still not sure what'll fit? Browse tool boxes for utes online, or get in touch with the Tools in a Box team or give us a call at 1300 026 937. We'll talk you through your measurements and match you to a toolbox or canopy that fits right the first time, no guessing or expensive returns needed.
